GAUGES AND CALLIPERS

Various Inspections and Measurements (Controls)
Simple and Tough.

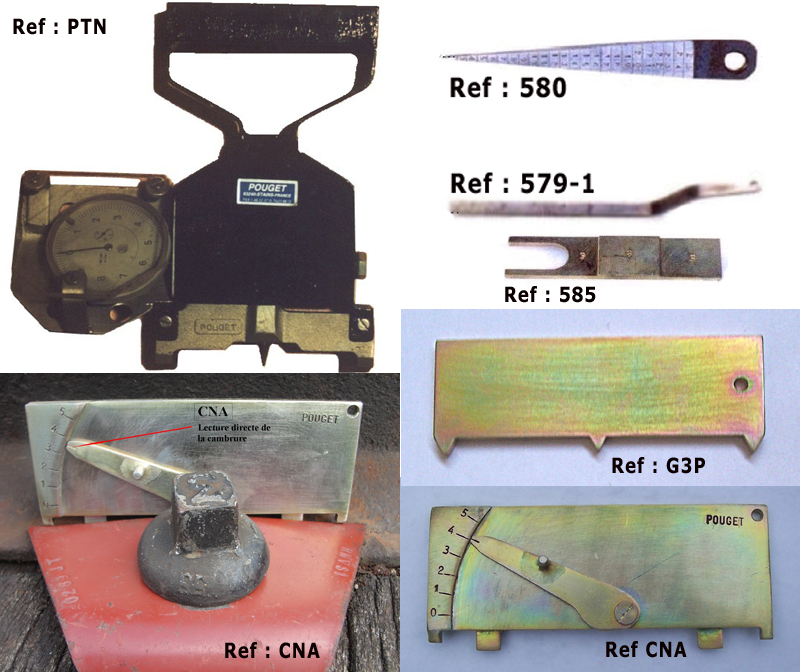

Portable POUGET TEST-NABLA (French clips)
Use to measure the curvature of the Nabla clip on
the track after tightening.
Measurement stroke = 10 mm
ƒƒMeasurement accuracy = 1/10e mm
ƒƒDelivered with woodencase = 30x30x10 cm
ƒƒWeight of the device in the case = 4 Kg
ƒƒReference : PTN

GAUGE for inspecting the tightness of clips
« RN » (french clips) – Angled Model
Scaled 0.3 to 5 mm
ƒƒLength : 150 mm
ƒƒWeight = 60 gr.
ƒReference : 579-1

CAM INDICATOR (For Nabla Clips)
Scaled : 0 to 5 mm
Weight = 0.260 Kg
ƒƒReférence : CNA

GAUGES 3 points in for NABLA Clips
For New Track : (Standard Tightening 1.5 mm)
Weight : 0.3 Kg
Ref. G3P
For Maintenance and Liberation : (controls 1 and 2 mm)
Weight : 63 gr.
Ref. G3P-A

CALLIPERS for inspecting the balf-open position of the switches
5/6/8 mm wedges
ƒƒLength 140 mm
ƒƒAperture = 20.5mm
ƒƒWeight = 0.17Kg
ƒƒReference : 585

GAUGE for Inspecting the Play of the Fishplate
ƒƒScaled 1 to 20 mm
ƒƒCadmium plated for protection
ƒƒLength = 230 mm
ƒƒWeight = 0.25 Kg
ƒƒReference : 580
