High-precision measure to check the track gauge and superelevation
(Tracks Renewal and Maintenance)
Lightweight (aluminium body) – integrated adjustable bubble level

This is a very accurate for the following direct readings and measurements
Track gauge reading = -10 to +40 mm.
ƒƒTrack superelevation reading = -40 to +200 mm
ƒƒGraduation mark = 1 mm
Immediate Reading
Electrically insulated
ƒƒDimensions : 1680 x 105 x 300 mm
ƒƒNet weight = 2.9 Kg for track gauge 1435 mm .

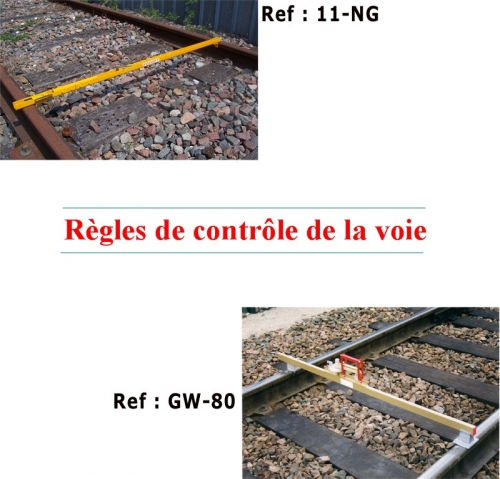

ƒƒReference : GW-80

We can supply theses Track Gauges Rules for all Other Gauges (To specify)

Certificate of Calibration (on request)

« Alongside platform » Rule, to check the positioning of the track in relation to the platform.
ƒƒ Reference : GW-85

SNCF Type Rule
Body in Duraluminium with Separated Level (Ref. 7) for Reading
of the Track Slope – Weight 3 Kg
Reference : 1NG

Single Standard Gauge Measure – Steel body – Weight : 2 Kg
With Separated Level (Ref. 7) for Reading of the Track Slope
Reference : 11NG

OPTIONS
Device for tram tracks : add … TR
ƒƒWooden Case = 13 Kg – Dimensions : 175 x 14 x 28 cm – ref. CO
