RAIL WELDING EQUIPMENTS
Made in
4/6
RAIL PROFILING GRINDERS (N-1 / N-12)
USE : Grinding after Alumino-thermic welding of rails.
ADVANTAGES : Grinding after Reprofiling of rails or Switches and Crossings.

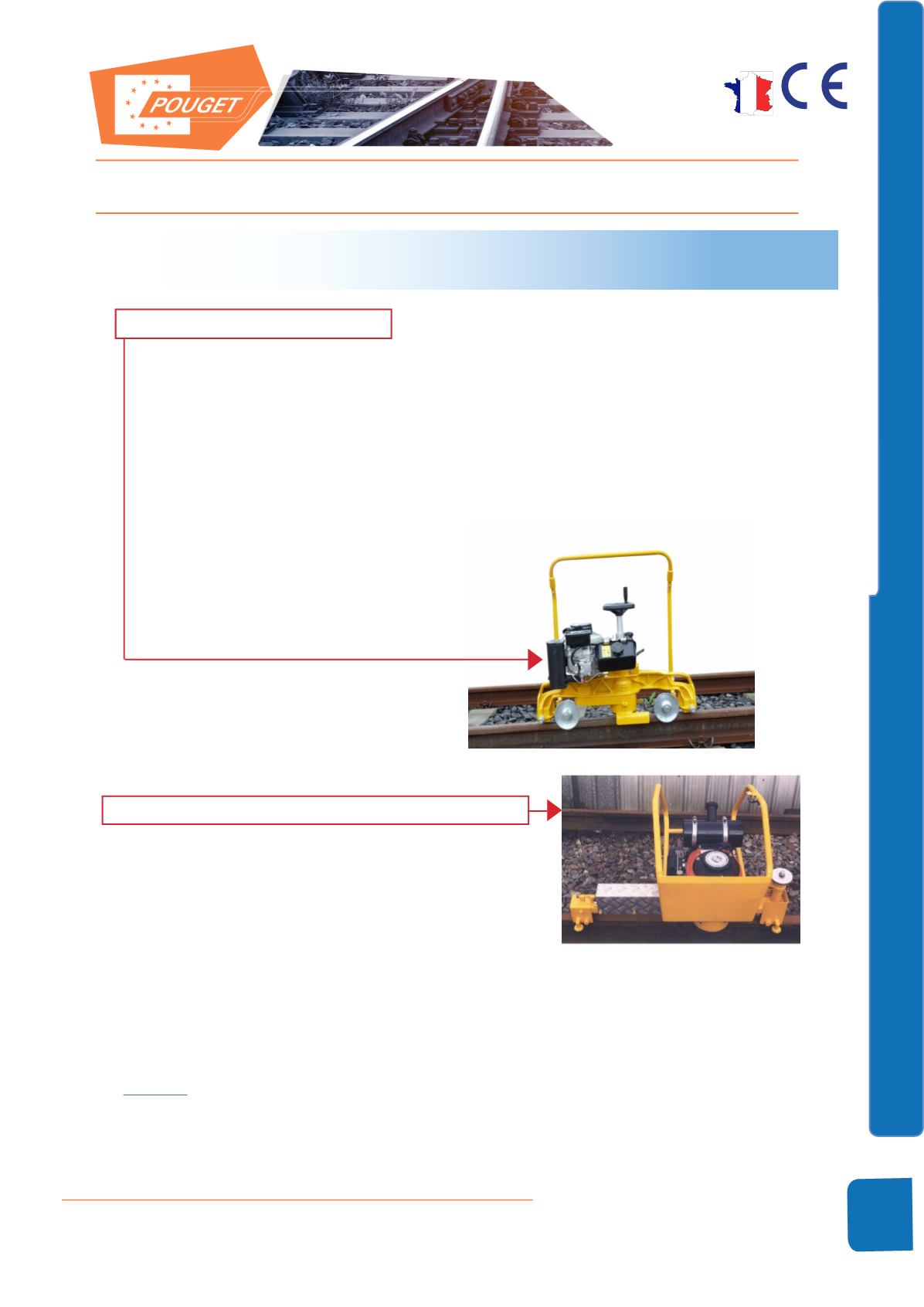

N-1 PROFILE RAIL GRINDER
ƒ ƒ Portable, to grind the rail 100 RE-90 R - UIC-54 after aluminothermic welding
ƒ ƒ With BERNARD Petrol Engine 7 HP - 4-stroke
ƒ ƒ Inclination possible from the horizontal to vertical position
ƒ ƒ Total swiveling range of the grinding unit is more than 180°
ƒ ƒ Grinding Wheel Ø 150 mm x 75 mm - Ref. 1039-B
ƒ ƒ Special Frame Construction with full view of the grinding
Suface Light Weight System consisting of combined support
and guide rollers to hold the machine against the rail when grinding in horizontal
position
ƒ ƒ Rotating Speed of the Wheel : 4 000 rpm
ƒ ƒ Centre-to-centre Guide Runners : 1 m.
ƒ ƒ Grinding Accurate : ± 0.1 mm
ƒ ƒ Weight = 68 Kg
N-12 PROFILE RAIL GRINDER, with Flexible
ƒ ƒ With Flexi-Horse, length 3.5 m equipped with :▷ ▷ Ø 150 mm CupWheel (option : 125 mm)
▷ ▷ or Ø 150 or 200 mm Flat Wheel
This Machine is equipped with :
ƒ ƒ 1 Petrol Engine 7HP (4 stroke or 2 stroke)
ƒ ƒ 1 Flexi-Horse, length 3.50 m with Ø 150 mm Flat Wheel
ƒ ƒ 1 Quick-Assembly Union between the Flexi-Horse and the Rail Grinding Machine.
ƒ ƒ Weights : Machine 58 Kg / Flexi-Horse 15 Kg
OPTION
with Electric Motor 4 kW - Ref. N12-E - Weight : 57 Kg
